Early Macintosh and Lisa Interfaces
(1981, 1982)

Daniel Kottke loaned these very early schematics for hardware designed to interface the Macintosh and Lisa together or to the Apple II for early development. We are providing it to you here for historical reference.

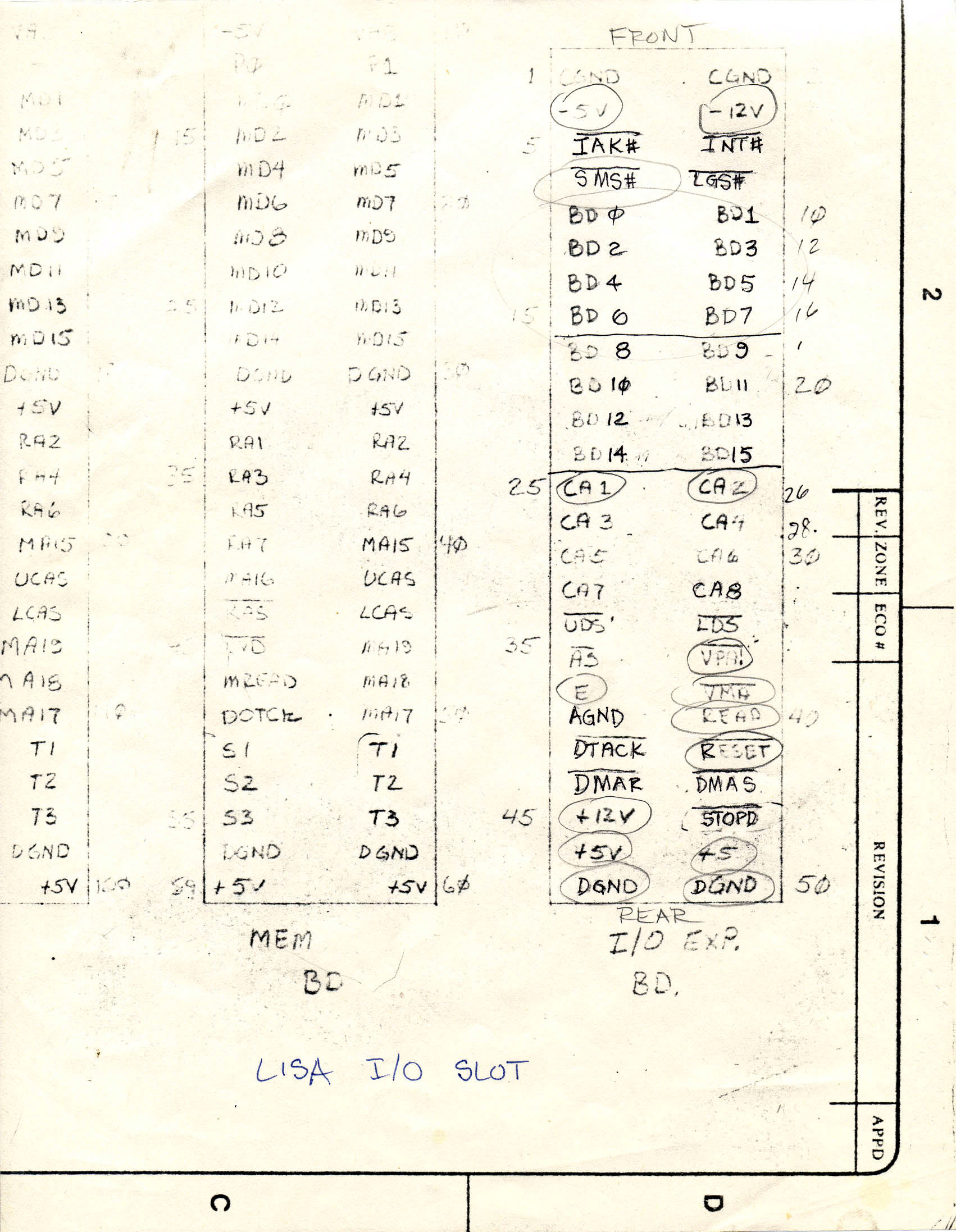

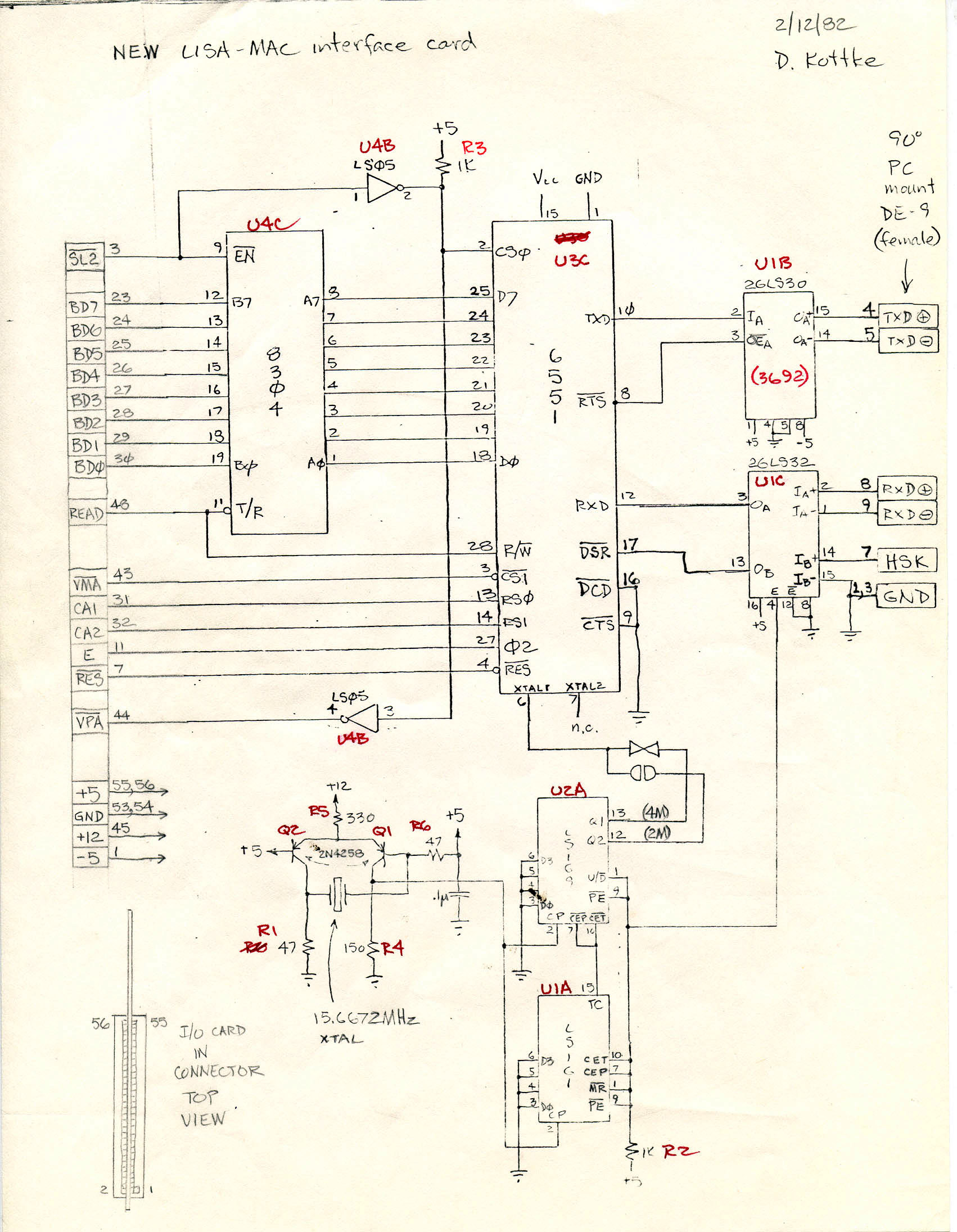

lisa-io-slot.jpg	lisa-mac-interface-card1.jpg

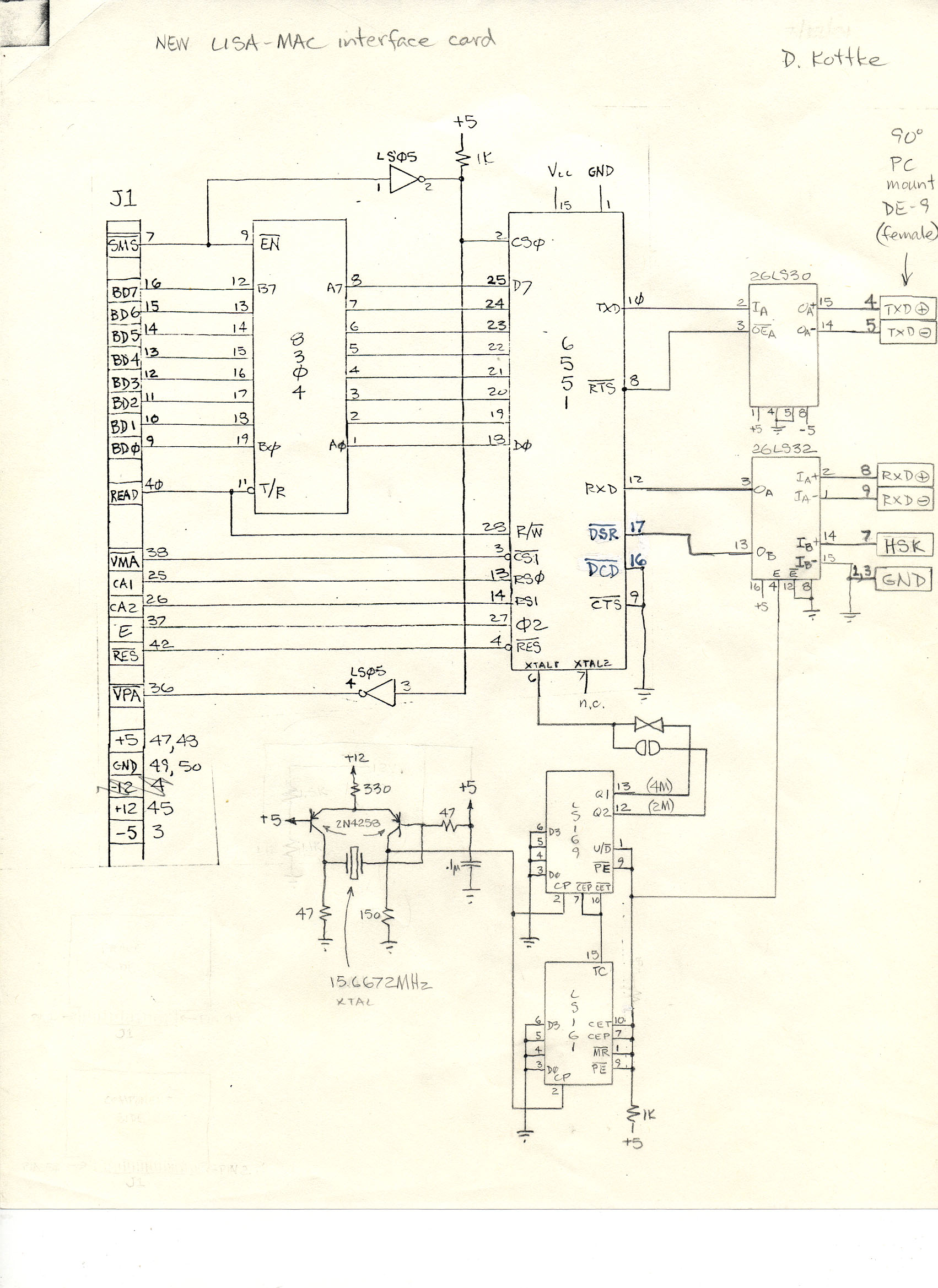

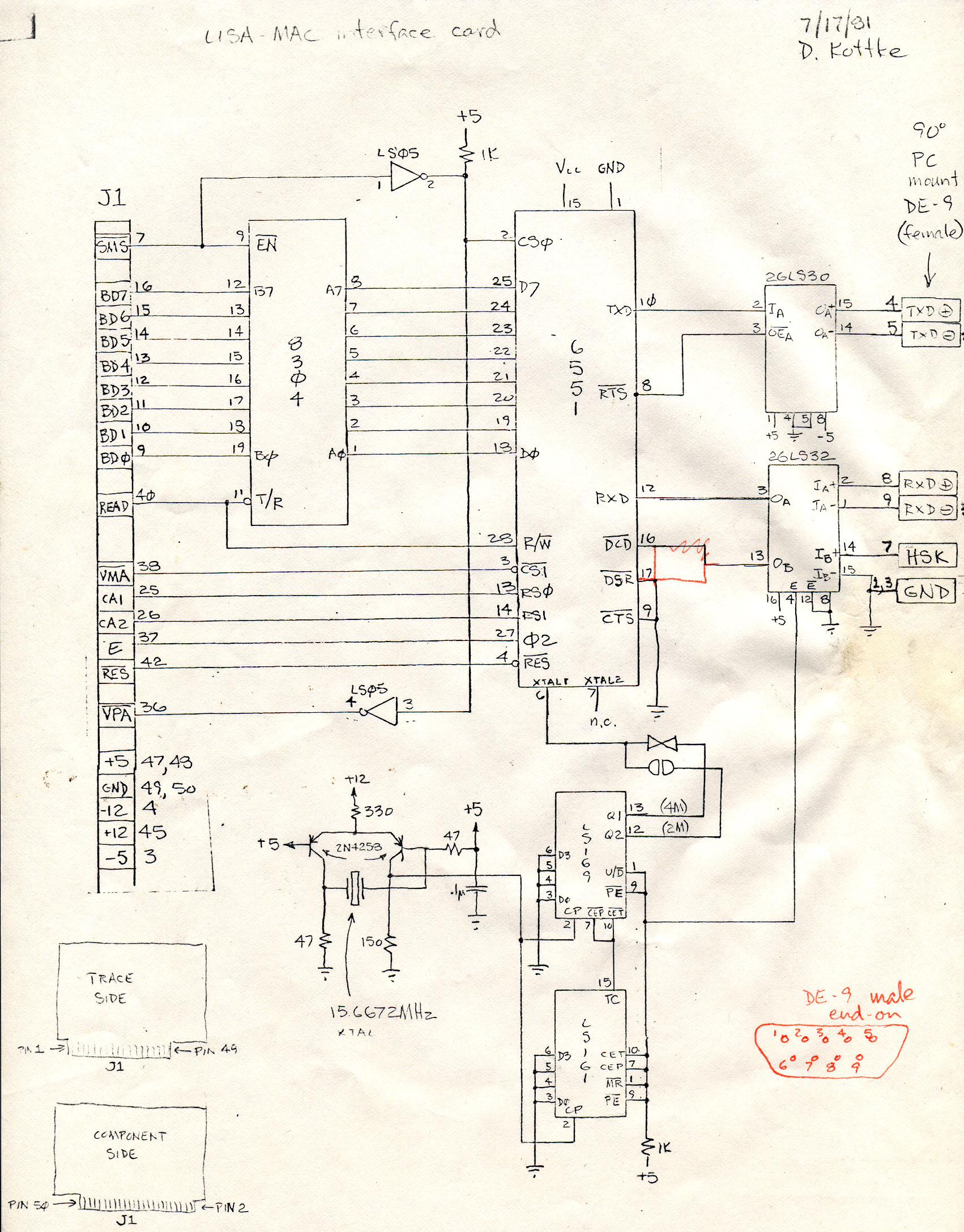

lisa-mac-interface-card2.jpg	lisa-mac-interface-card3.jpg

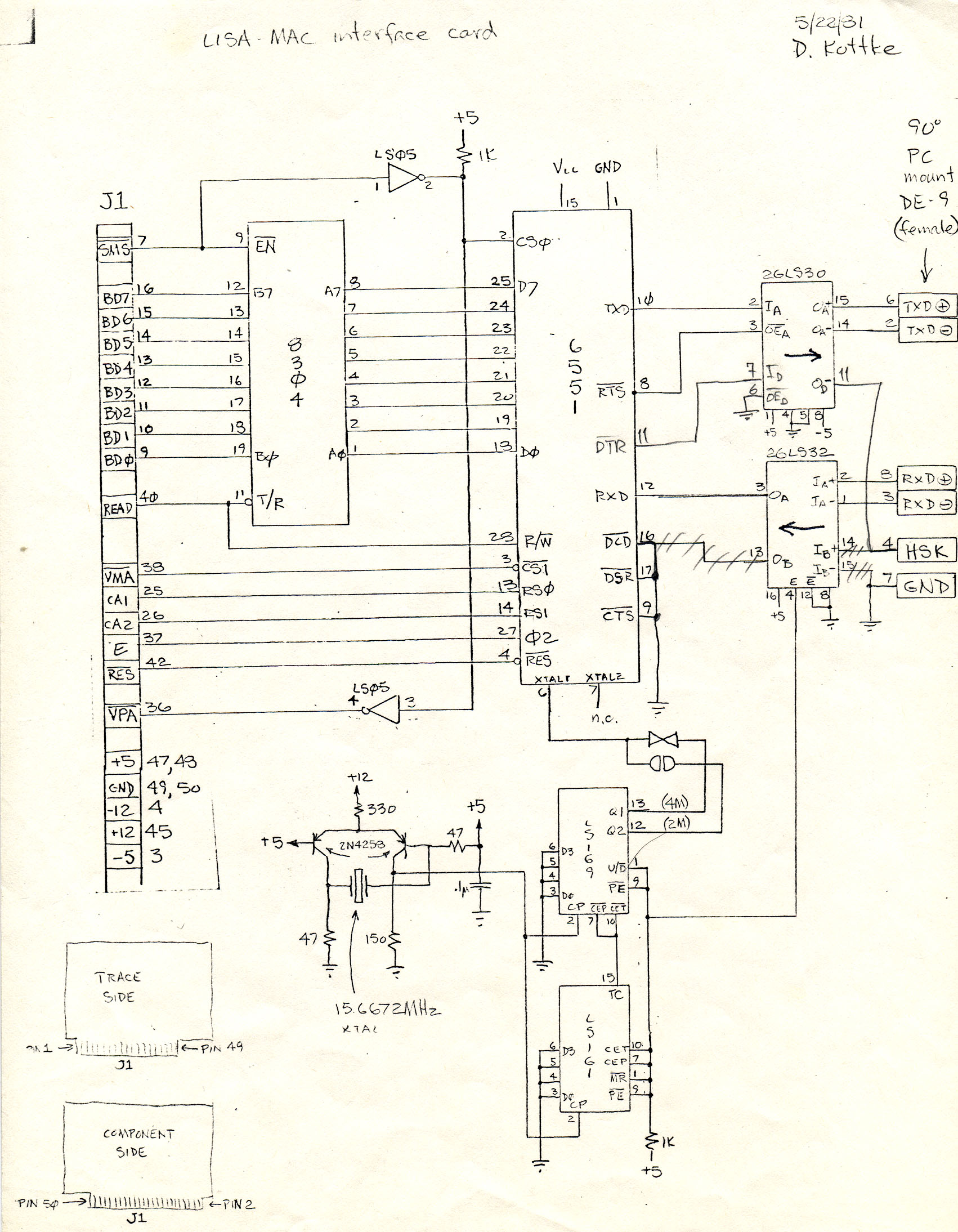

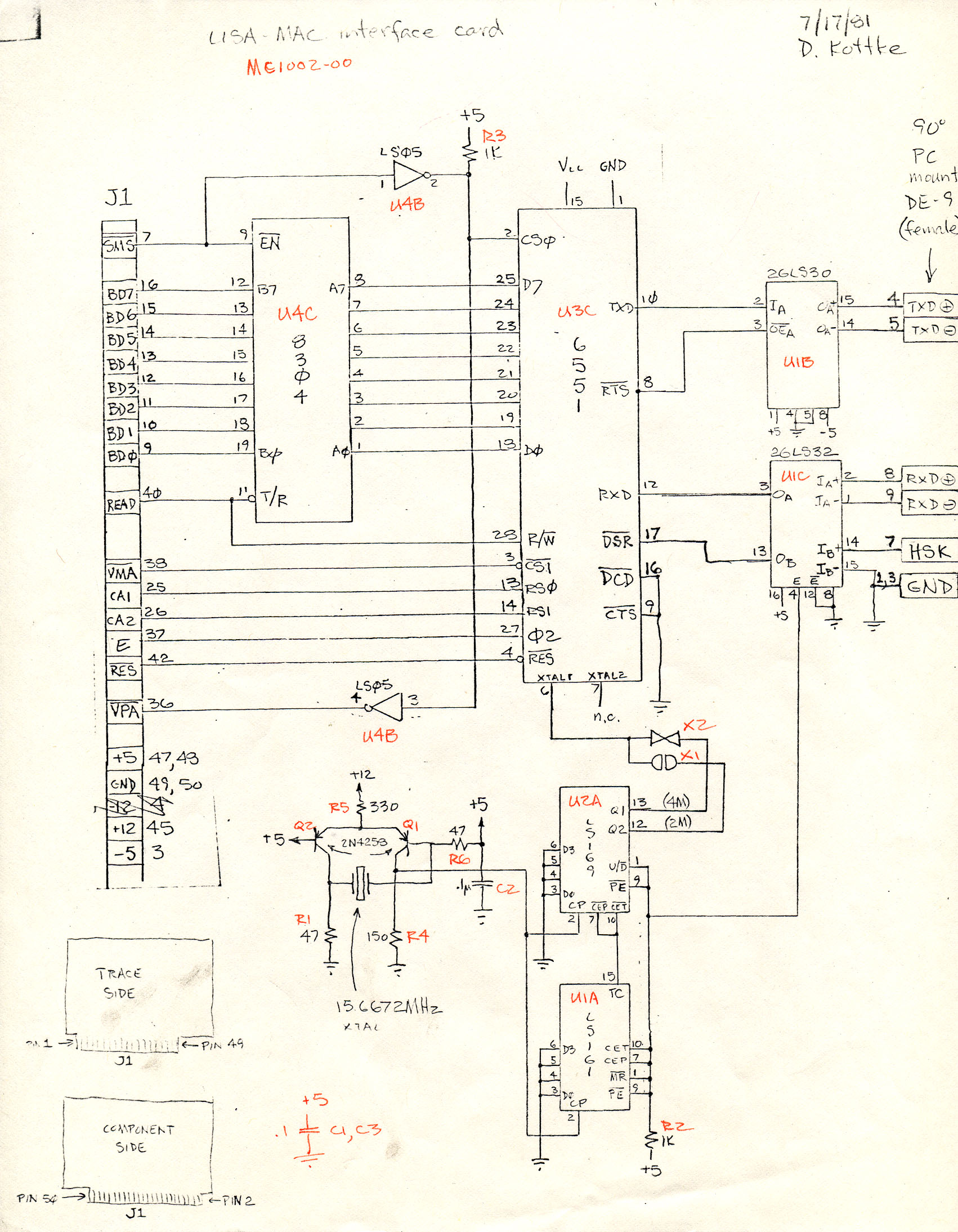

lisa-mac-interface-card4.jpg	lisa-mac-interface-card5.jpg

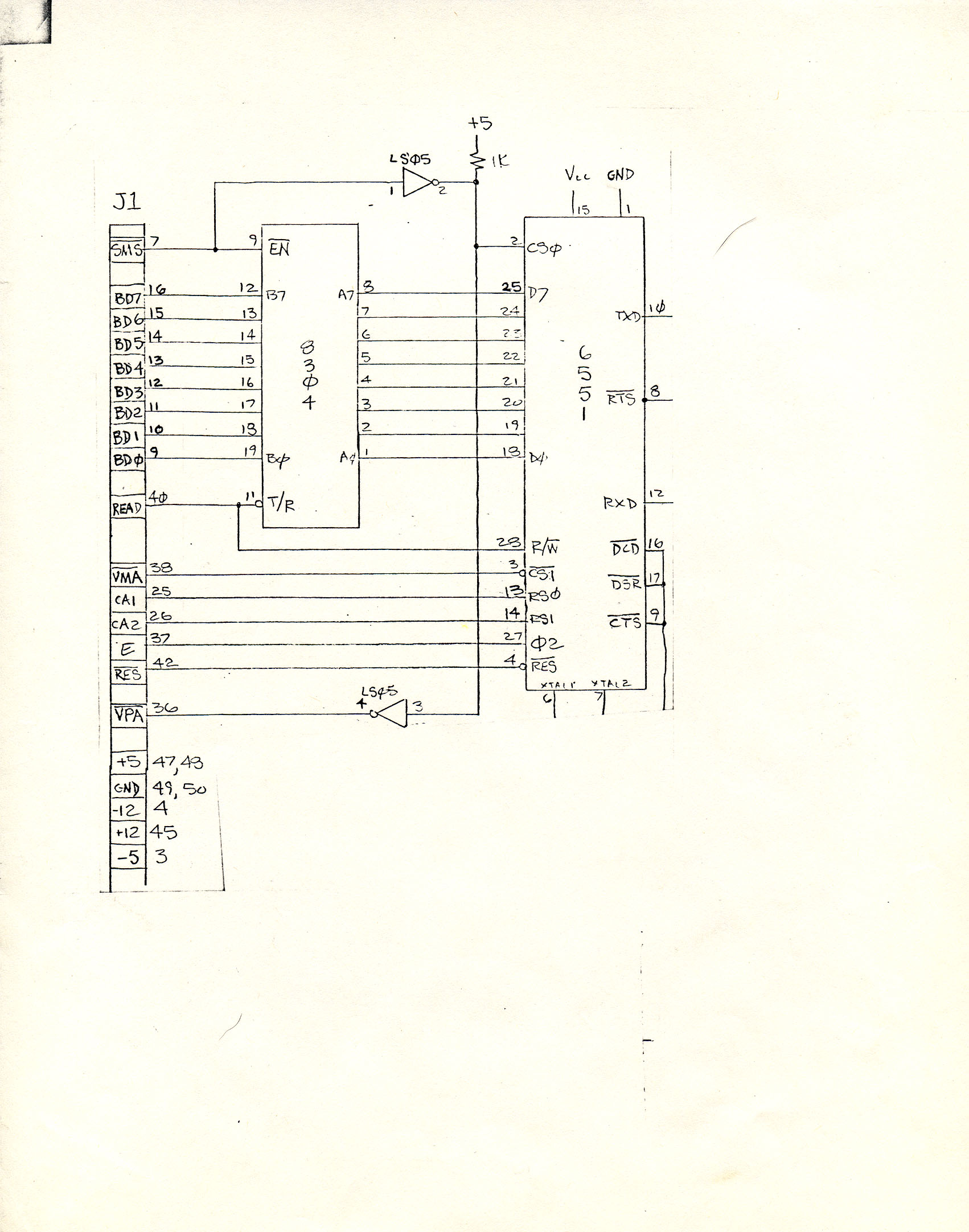

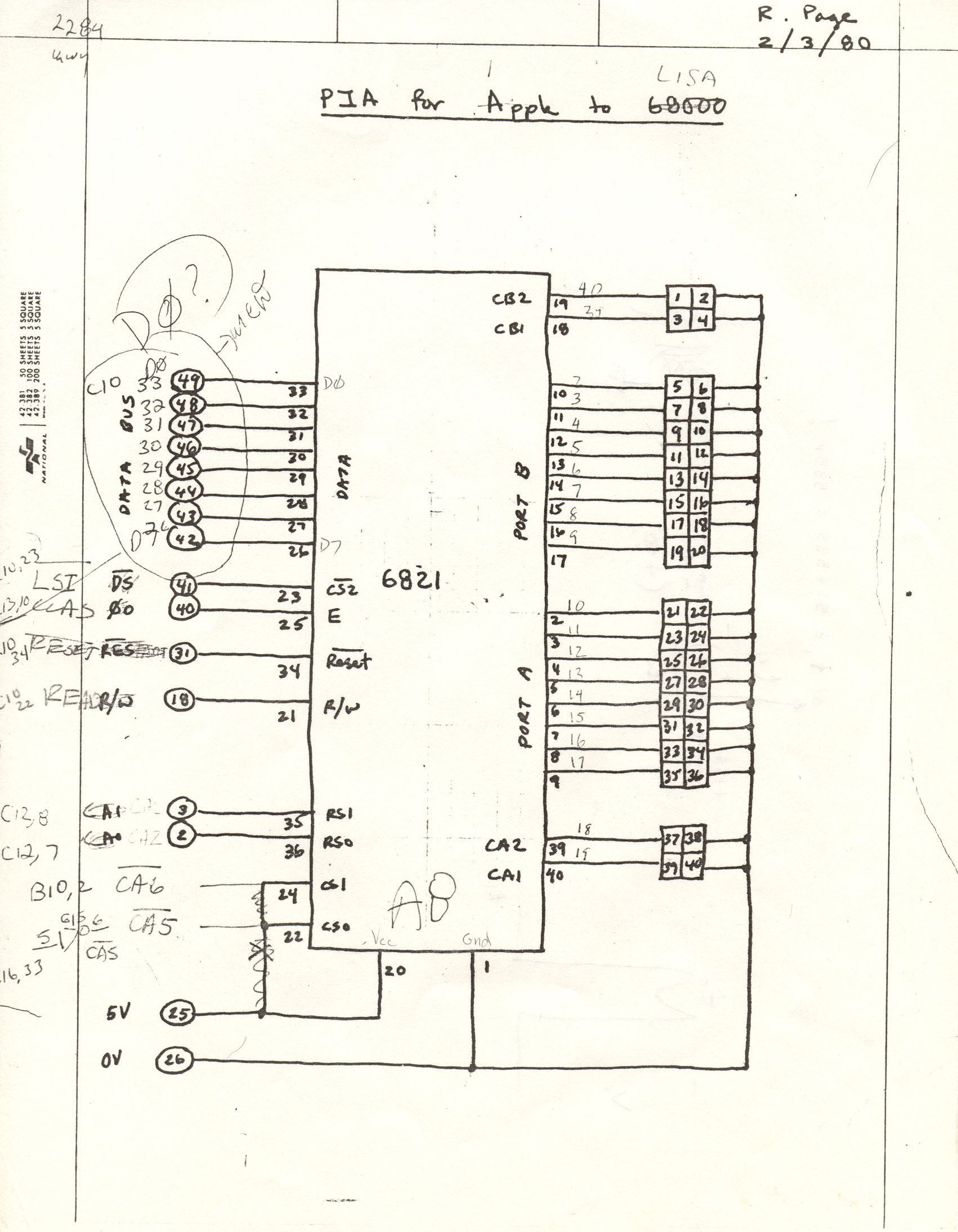

misc-6551.jpg	pia-apple-lisa.jpg
